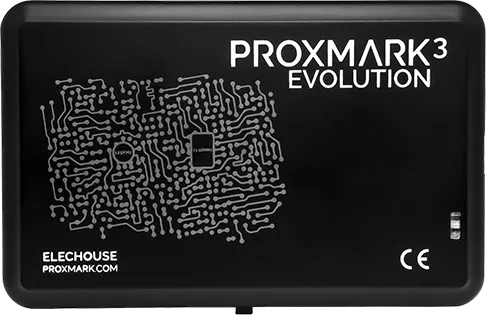

Proxmark 3 EVO

Important The Proxmark 3 EVO is an obselete device, and the information provided below is for reference only. It has been superceded by the Proxmark 3 RDV 4.

Device Background

The Proxmark 3 EVO, or "Evolution" is designed by Elechouse to be the ultimate evolution of the Proxmark 3 Platform.

No larger than a wallet, the Proxmark 3 Evo has been miniaturised and modernised to respond to the evolving requirements of the community.

It can be considered the ultimate desktop device for RFID researchers and hobbists.

  • Durable: High quality ABS case protects your hardware, even on the go
  • Flexible: Only proxmark to feature an RGB LED for intuative status indication
  • Android Compatible: Works with Project Walrus for automated red-teaming

Device Characteristics

  • Miniaturised: 60 x 90 x 12mm
  • Internalised, Pre-tuned antennas
  • RGB LED (integrated into official codebase)
  • ABS case
  • 100% Compatible with the official Proxmark codebase

Technical Specifications

  • CPU AT91SAM7S512
  • Storage External 2MBits / 512Kb SPI flash
  • Interface 1x RGB LED, 1x button.
  • Battery External battery connector
  • Antennas
    • LF Pretuned, Internal
    • HF Pretuned, Internal

Image Gallery

Proxmark 3 EVO Presentation & Unboxing Video

Buy a Proxmark 3 EVO

The Proxmark 3 EVO is obselete hardware and no longer available for purchase.
